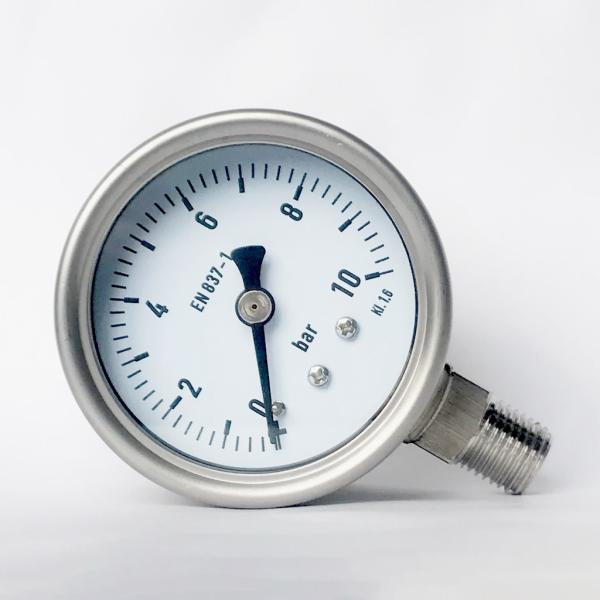

2.5" 10 bar Liquid-filled Manometer SUS 316 Tube/Socket All
Stainless Steel Pressure Gauge
Description
Our stainless steel gauges have features that help minimize
downtime. Many models come standard with a removable bezel ring,
giving users access to the front of the gauge for zero-point
adjustments or to replace a broken window. This design feature
saves production time and keeps budgets on track.
Applications
Intended for adverse service conditions where pulsating or
vibration exists
Chemical and petrochemical, power stations, mining, on and
offshore, environmental technology, mechanical engineering and
plant construction
Suitable for gaseous or liquid media that will not obstruct the
pressure system
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Pressure ranges up to 15,000 psi
Specifications
Design | EN 837-1 |
Nominal size | 63mm |
Accuracy | Class 1.6 |
| Pressure range | 10 bar (customized) |
Pressure limitation | Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value |
| Medium temperature | Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
Ambiet temperature | Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
Temperature effect | When the temperature of the measuring system deviates from the
reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection | Stainless steel, SUS 304, SUS 316 |
Pressure element | Stainless steel, C-type or helical type |
| Movement | Stainless steel |
| Dial | Aluminium, white, with pointer stop pin
Black and red lettering |
| Pointer | Aluminium, adjustable type |
| Case | Stainless steel |
| Ring | Bayonet ring, stainless steel |
| Window | Plastic, glass |
| Unit | bar, psi, kg/cm2, kPa, MPa |
| Thread | 1/4 G, BSP, PT, BSPT, NPT |
| Options | Other process connection
Surface mounting flange
Mounting bracket |
Dimensions
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
