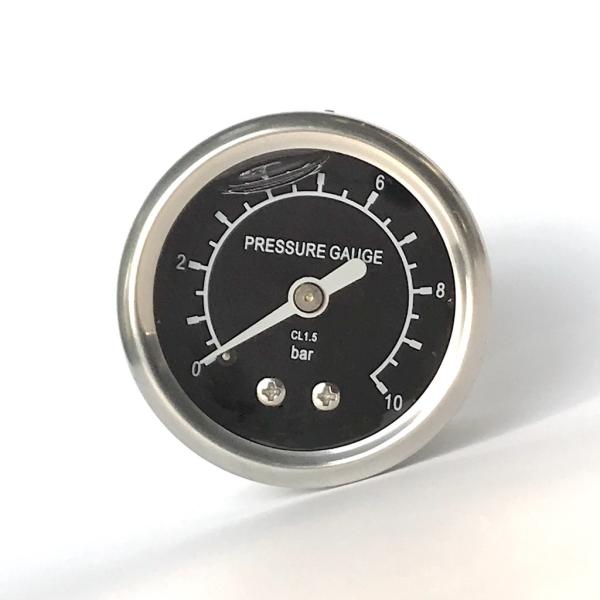

1.5" 10 bar Axial Direction Mount Manometer Dual Scale All
Stainless Steel Pressure Gauge For Vibration Environments
Description
Liquid-filled pressure gauges are used in wet and cold environments
or when there is a lot of vibration.
A pressure gauge filled with pure glycerine can work down to -5°C.
Glycerine becomes viscous below 17°C (which slows down the
mechanism) and around -5°C the pressure gauge is completely
blocked.
For low temperatures a mixture of glycerine and water is used which
allows the pressure gauge to withstand up to -46°C.
Applications
For aggressive gaseous and liquid media that are not highly
crystallising, also operates in aggressive environments
Oil and gas industry, chemical and petrochemical industry, pumbling
and HVAC, hydraulics and pneumatics
Machine building and general plant construction
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Scale ranges up to 0 ... 1600 bar
Specifications
Design | EN 837-1 |
Nominal size | 40mm |
Accuracy | 1.5 |
| Pressure range | 10 bar (customized) |
Pressure limitation | Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value |
| Medium temperature | Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
Ambiet temperature | Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
Temperature effect | When the temperature of the measuring system deviates from the
reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection | Stainless steel, SUS 304, SUS 316 |
Pressure element | Stainless steel, C-type or helical type |
| Movement | Stainless steel |
| Dial | Aluminium, white, with pointer stop pin
Black and red lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Bayonet ring, stainless steel |
| Window | Plastic, glass |
| Unit | bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection
Surface mounting flange
Mounting bracket |
Dimensions
Model M02.01, lower mount (radial)
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
