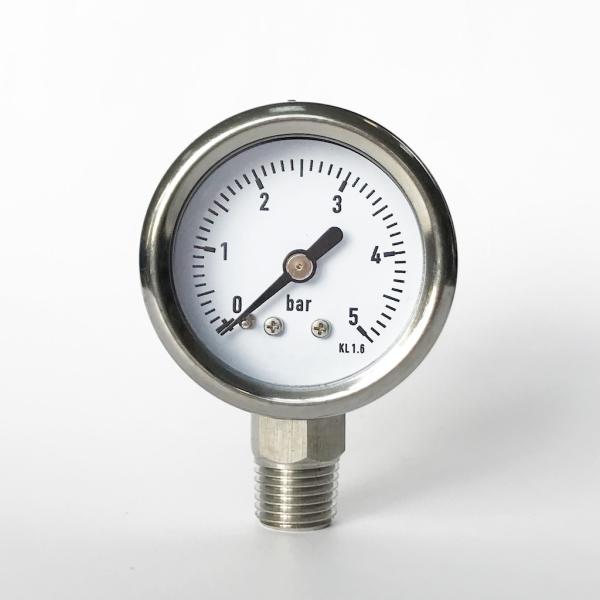

1.5" 5 bar Bottom Connection Manometer White Dial All Stainless
Steel Pressure Gauge For Gas and Liquid
Description
Pressure gauges with dials are sensitive to vibrations and pressure
surges or drops because of the mechanism that transforms the
deformation of the sensing element into a rotational movement for
the pointer. A solution to this problem has been found by filling
the pressure gauge housing completely with liquid. Therefore, when
choosing a pressure gauge, you should consider whether you need a
dry or liquid-filled one.
Applications
For aggressive gaseous and liquid media that are not highly
crystallising, also operates in aggressive environments
Oil and gas industry, chemical and petrochemical industry, pumbling
and HVAC, hydraulics and pneumatics
Machine building and general plant construction
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Scale ranges up to 0 ... 1600 bar
Specifications
Design | EN 837-1 |
Nominal size | 40mm |
Accuracy | 1.6, 1.0, 2.5 |
| Pressure range | 5 bar (customized) |
Pressure limitation | Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value |
| Medium temperature | Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
Ambiet temperature | Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
Temperature effect | When the temperature of the measuring system deviates from the
reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection | Stainless steel, SUS 304, SUS 316 |
Pressure element | Stainless steel, C-type or helical type |
| Movement | Stainless steel |
| Dial | Aluminium, colorful, without pointer stop pin
Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Bayonet ring, stainless steel |
| Window | Plastic, glass |
| Unit | bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection
Surface mounting flange
Mounting bracket |
Dimensions
Model M02.01, lower mount (radial)
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
