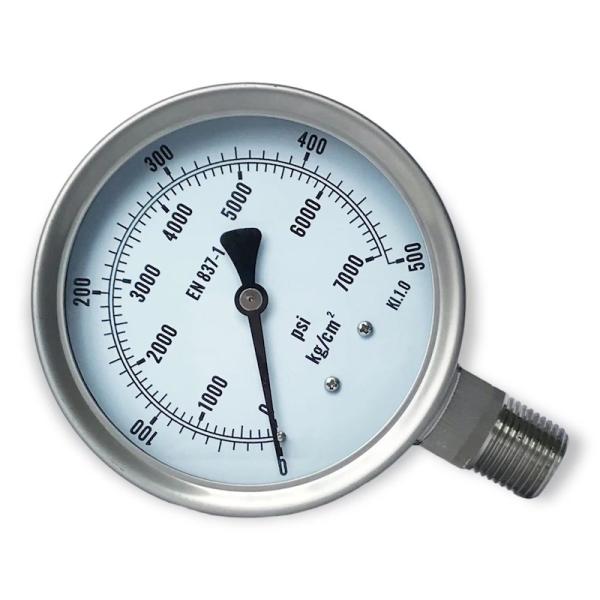

100mm Glycerin Manometer All Stainless Steel Pressure Gauge for Water
Description
A water pressure gauge is a pressure measurement instrument that
indicates the water pressure in a system. It is a calibrated
pressure indicator connected to a water pipe or tank and translates
the force exerted on it into units such as Pascal, bar, Torr, etc.
Water pressure gauges are invaluable devices in domestic,
commercial, and industrial applications. They are easy to use, are
durable, require little maintenance and are long-lasting. They are
practical and provide an on-the-spot measurement of pressure, which
is crucial information for various water applications.
Applications
For gaseous and liquid aggressive media that are not highly viscous
or crystallising, also in aggressive environments
Oil and gas industry, chemical and petrochemical industry, pumbling
and HVAC, hydraulics and pneumatics
Machine building and general plant construction
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Scale ranges up to 0 ... 1600 bar
Specifications
Design | EN 837-1 |
Nominal size | 100mm |
Accuracy | 1.0 |
| Pressure range | 500 kg/cm2 (customized) pressure gauge for water |
Pressure limitation | Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value |
| Medium temperature | Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
Ambiet temperature | Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
Temperature effect | When the temperature of the measuring system deviates from the
reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection | Stainless steel, SUS 304, SUS 316 |
Pressure element | SS 316L, H-type bourdon tube |
| Movement | SS 304 |
| Dial | Aluminium, white, with pointer stop pin
Black and red lettering, dual scale |
| Pointer | Aluminium |
| Case | SS 304 |
| Ring | Bayonet ring, stainless steel |
| Window | PC, glass, safety glass |
| Unit | bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection
Surface mounting flange
Mounting bracket |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
